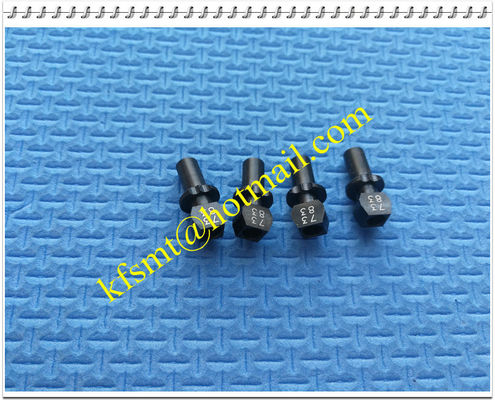

Yamaha YV100X YV100XG 73A Nozzle Assy KV8-M7730-00X SMT Perbaiki Nozzle

Yamaha YV100X YV100XG 73A Nozzle Assy KV8-M7730-00X SMT Fix Nozzle

Merk : Yamaha

Nama Bagian: Nozel

Nomor Bagian: KV8-MM7730-00X

Model: 73A

Mesin: YV100X, YV100XG

YAMAHA YV100X PHILIPS SMT NOZZLE

Nomor Bagian (OEM) Deskripsi
KV8-M71U1-002 YAMAHA YV100X PHILIPS SMT NOZZLE - TYPE 71F ( 2 LUBANG )
KV8-M71U1-001 YAMAHA YV100X PHILIPS SMT NOZZLE - TYPE 72F ( ' X' )
KV8-M7WK-A00 TYPE 7WF ( 1.2 / 0.6) (FNC)
KV8-M71N1-A00 TIPE 71F ( 2 LUBANG )
KV8-M71N2-A00 TIPE 72F ( ' X' )
KV8-M71N3-A00 TIPE 73F
KV8-M7WK-A00 TYPE 7WF (Æ1.2/Æ0.6)
KV8-M71U6-001 NZ.PERUMAHAN
KV8-M71U7-100 SPRING
KV8-M71U5-100 SEKRUP
FILTER K46-8527-C0X
KV8-M7WK-A00 TYPE 7WF (Ø1.2 / 0.6)
KV8-M7710-A0X YAMAHA YV100X PHILIPS SMT NOZZLE 71A (1.2X0.8)
KV8-M7720-A0X YAMAHA YV100X PHILIPS SMT NOZZLE 72A (1.7X0.94)
KV8-M7730-A0X 73A
KV8-M7740-A0X 74A
KV8-M7760-00X 76A (MELF)
KV8-M7WL-A00 7WA (1.2X0.6)

YAMAHA YV100 YVL88 PHILIPS EMERALD TOPAZ SMT NOZZLE

Nomor Bagian (OEM) Deskripsi Keterangan
KM0-M711A-31X FLOATING NOZZLE (untuk Head1) Tipe 31
KM0-M711A-03X NOZZLE A Tipe 31 UFOType
KM0-M711B-00X NOZZLE B Tipe 32-1
KM0-M711C-02X NOZZLE C Tipe 32-2
KM0-M711D-00X NOZZLE D COMP Tipe 33
KG7-M711D-C0X O-RING P4 O-RING P4 Tipe B
KG7-M711D-C0X O-RING
90990-17J013 O-RING
KM0-M711E-00X NOZZLE COMP Tipe 34
KG7-M711E-00X O-RING P9 B-P9
KG7-M711E-00X O-RING
90990-17J015 O-RING
KG7-M71AB-A0X NOZZLE AB Tipe 35
KM0-M71MN-A0X LINGKARAN NOZZLE 3A
KM0-M711J-A0X NOZZLE TYPE39 ASSY.Ketik 39 jenis lingkaran
KM0-M711A-02X A (TYPE 31) Tetap
KM0-M711A-02R NOZZLE - A (TYPE 39) OD 1.2/ ID 0.6 (PUTAR TIP) SPRING LOADED
KM0-M711A-302 NOZZLE - A (TYPE 31) 'X' SPRING LOADED (1,2 X 0,8)
KM0-M711A-0807 NOZZLE - A (TYPE 31) 'X' SPRING LOADED ( 0.8 X 0.7)

PEMEGANG NOZZLE YAMAHA PHILIPS EMERALD TOPAZ

Nomor Bagian (OEM) Deskripsi
--
KV8-M7106-70
- PEMEGANG NOZZLE SHAFT YV100II
YV100X SHAFT NOZZ

YAMAHA SHAFT NOZZLE PHILIPS EMERALD TOPAZ

Nomor Bagian (OEM) Deskripsi
KV8-M7135-A0X KEPALA SHAFT ASSY
KM9-M7106-00X SHAFT KEPALA ASSY

YAMAHA YG200 SMT NOZZLE

Nomor Bagian (OEM) Deskripsi

KV8-M71N1-A0 YAMAHA YG200 71F ASSY SMT NOZZLE (201F)
KV8-M71N2-A0 YAMAHA YG200 72F ASSY SMT NOZZLE (202F)
KV8-M71N9-A0 YAMAHA YG200 79F ASSY SMT NOZZLE (209F)
KV8-M71N3-A0 73F ASSY NZ.(203F)
KV8-M87XD-A0 73F-D ASSY NZ.(203F-D)
KGT-M7710-A0 201A ASSY NZ.
KGT-M7720-A0 202A ASSY NZ.
KGT-M7790-A0 209A ASSY NZ.
KGT-M7730-A0 203A ASSY NZ.
KGT-M77XD-A0 203A-D ASSY NZ.
KGT-M7760-A0 206A ASSY NZ.

YAMAHA YG100 SMT NOZZLE

Nomor Bagian (OEM) Deskripsi
KGS-M7710-A1X NOZZLE 211A ASSY.
KGS-M7720-A1X NOZZLE 212A ASSY.
KGS-M7730-01X NOZZLE 213A
KGS-M7740-A1X NOZZLE 214A ASSY.
KGS-M7750-A1X NOZZLE 215A ASSY.
KGS-M7760-01X NOZZLE 216A
KGS-M7790-A1X NOZZLE 219A ASSY.
KV8-M711N-A0X NOZZLE & ASSY SHAFT.
KV8-M71N1-A1X NOZZLE 71F ASSY.
KV8-M71N2-A1X NOZZLE 72F ASSY.
KV8-M71N3-A0X NOZZLE 73F ASSY.
KV8-M71U5-00X SCREW
KV8-M71U8-00X BLOK,NOZZLE
KV8-M712N-A0X NOZZLE & ASSY SHAFT.
KV8-M71N9-A1X NOZZLE 79F ASSY.
KV8-M713N-A0X BLOK & SHAFT ASSY.

YAMAHA YG12,YG12F,YS12,YS24 SMT NOZZLE

KHN-M7710-A1X NOZZLE 301A ASSY
KHN-M7720-A1X NOZZLE 302A ASSY
KHY-M7710-A0x Nozzle 311A ​​assy
KHY-M7720-A0x Nozzle 312A assy
KHY-M7730-A0x Nozzle 313A assy
KHY-M7740-A0x Nozzle 303A-314A assy
KHY-M7750-A0x Nozzle 304A-315A assy
KHY-M7760-A0x NOZZLE 305A/316A ASSY

YAMAHA YV88X PHILIPS EMRALD X SMT NOZZLE

Nomor Bagian (OEM) Deskripsi

"KGA-MT1N1-AOX" YAMAHA YV88X SMT NOZZLE PHILIPS EMRALD ASSY - TYPE 61F (2 LUBANG)
KGA-M71N1-A0X YAMAHA YV88X SMT NOZZLE PHILIPS EMRALD ASSY - TYPE 61F (2 LUBANG)
KGA-MT1N2-AOX YAMAHA YV88X SMT NOZZLE PHILIPS EMRALD ASSY - TYPE 62F (0,92 X 1,75) 'X'
KGA-M71N2-A0X TYPE 62F (0,92 X 1,75) 'X'
KGA-M71N3-A1X TIPE 63F
KGA-M71N4-A0X TIPE 64F
KGA-M71N5-A0X Y TYPE 65F
KV7-M710M0-AOX YV88X PEMEGANG NOZZLE ASSY
KGA-MT1N1-AOX-T NZ.TIP 61F (2 LUBANG)
KGA-MT1N2-AOX-T NZ.TIP-TYPE 62F (0,92 X 1,75)
KV8-M77WL-AOX>" 7WL ASSY (Ø1.2 / 0.6)"

YAMAHA KV6-M7113 HSD DISPENDING NOZZLE PHILIPS

Nomor Bagian (OEM) Deskripsi Nomor Bagian (OEM) Deskripsi
KV6-M7113-1XX YAMAHA YMH KV6-M7113 HSD DISPENDING NOZZLE PHILIPS 2D/2S 0.7/ 0.4 P=0.9
KV6-M7113-2XX YMH KV6-M7113 HSD DISP.Selandia Baru2D/2S 0.8/ 0.5 P=1.3
KV6-M7113-3XX YMH KV6-M7113 HSD DISP.Selandia Baru2D/2S 1,3/ 0,9 P=1,8
KV6-M7113-4XX YMH KV6-M7113 HSD DISP.Selandia Baru1D/1S 0,7/ 0,4
KV6-M7113-5XX YMH KV6-M7113 HSD DISP.Selandia Baru1D/1S 0.8/ 0.5
KV6-M7113-6XX YMH KV6-M7113 HSD DISP.Selandia Baru1D/1S 1.5/ 1.1
KV6-M7113-XXX YMH KV6-M7113 HSD DISP.Selandia Baru2D/2S 0,7/ 0,4 P=0,8
KV6-M7113-XXX YMH KV6-M7113 HSD DISP.Selandia Baru1D/1S 1.5/ 1.1
KV6-M7113-XXX YMH KV6-M7113 HSD DISP.Selandia Baru1D/1S 1.65/ 1.25
