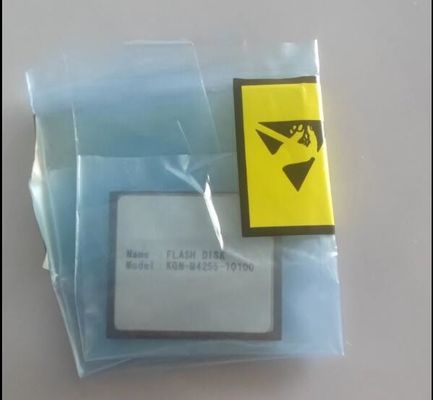

KGN-M4255-101 YV100XG Kartu CF Hard disk KGN-M4255-100

KGN-M4255-101 YV100XG Kartu CF Hard disk KGN-M4255-100

Informasi detil:
1, Nama Bagian: Flash Disk
2, Nomor Bagian: KGN-M4255-101
3, Aplikasi: Mesin Yamaha YV100XG
4, Asli baru

KM5-M4200-02X UNIT SISTEM ASSY
KM5-M441H-02X VISI PAPAN ASSY
KGN-M5840-022 SERVO BOARD ASSY.
KGN-M5880-004 D.PAPAN DAYA ASSY.
KGN-M5810-305 PAPAN PENGEMUDI ASSY.
KV8-M4572-012 ASSY KEPALA PAPAN IO.
KGN-M5810-405 PAPAN PENGEMUDI ASSY.
KGT-M4580-012 ASSY PAPAN KONVERYOR IO
KGN-M5840-022 SERVO BOARD ASSY.
KM5-M5840-005 SERVO BOARD ASSY.
KGN-M5810-110 PAPAN PENGEMUDI ASSY.
KGN-M5810-113 DRIVER BOARD ASSY.
KGN-M5810-110 PAPAN PENGEMUDI ASSY.
KGN-M5840-100 SERVO BOARD ASSY.
KGN-M5840-023 SERVO BOARD ASSY.
KGN-M5840-040 SERVO BOARD ASSY.
KGN-M5840-035 SERVO BOARD ASSY.
KGA-M6590-000 E.COM ASSY
PAPAN ANTARMUKA KGR-M4530-XXX ASSY.
KGN-M5880-008 D. PAPAN DAYA ASSY.
KW3-M4209-110 PAPAN SISTEM ASSY.
KGS-M4200-110 PAPAN SISTEM ASSY.
KV8-M4572-002 ASSY KEPALA PAPAN IO.
KV8-M4572-110 ASSY KEPALA PAPAN IO.
KGT-M4570-000 IO PAPAN KEPALA ASSY.
KV8-M4572-020 ASSY KEPALA DEWAN IO.
KV8-M4572-100 IO PAPAN KEPALA ASSY.
KV7-M4550-110 PAPAN KONEKSI ASSY
KM5-M441H-021 PAPAN VISI ASSY
KJ0-M5810- DRIVER BOARD ASSY
KM5-M4582-101 IO CONVEYOR UNIT ASSY
PAPAN PENGEMUDI LED KV8-M6474-000.
IO KEPALA Papan ASSY
SISTEM UINT ASSY
KM5-M5840-021 SERVO BOARD ASSY
KGA-M4550-100 TOPAZ XI II
KHL-M441H-13 PAPAN VISI ASSY.YG12 ,YS12
KJO-M5810-E4X KJ0-M5810-44X PAPAN PENGEMUDI ASSY.
KV1-M5303-00X KV1-M5303-01X YV100X YV88X
KM5-M4200-01X YAMAHA SYSTEM UNIT ASSY.CPU Nomor bagian: 5322 218 12101
KM5-M5840-03X KM5-M5840-04X YV100XG,YV100X
KV1-M441H- YV100XG VISIONYAMAHA YV100XG
KM5-M441H-02X Part no.: 9498 396 00494 YV100X VISI
KV7-M4550-100 Papan koneksi assyPart nr.: 9965 000 09030
YV100XG KW3-M4209-00X KW3-M4209-XXX UNIT SISTEM ASSY
KV1-M441H-17X YV100XG VISION 板 YAMAHA YV100XG
YG100
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-03X SERVO BOARD ASSY 3
3 KGS-M4200-00X UNIT SISTEM ASSY 1
4 KGK-M5810-01X DRIVER BOARD ASSY 1
5 PAPAN PENGEMUDI KGN-M5810-40X 1
6 KGK-M5810-41X DRIVER BOARD ASSY 1
7 KGJ-M441H-03X VISI BOARD ASSY 1
8 KGJ-M441H-30X VISION BOARD ASSY 1
9 KGS-M4530-11X REMOTE JIKA BOARD ASSY 1
10 KGN-M5880-00X D. PAPAN PAPAN DAYA 1
11 KGK-M4136-10X PANEL TANPA VISI 1
12 KW3-M4256-00X CD-ROM DRIVE 1
13 FLASH DISK KGK-M4255-00X1
14 KGS-M5303-00X SW DAYA DC5 1
15 KGS-M5303-10X SW DAYA DC12 1
16 KGK-M4185-10X KIPAS MOTOR ASSY 3
YG200
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-02X SERVO BOARD ASSY 3
3 KGK-M4200-00X UNIT SISTEM ASSY 1
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 PAPAN PENGEMUDI KGN-M5810-10X 1
6 KGJ-M441H-02X VISION BOARD ASSY 2
7 KGR-M4530-01X ASSY PAPAN INTERFACE 1
8 KGN-M5880-00X D. ASSY PAPAN DAYA 1
9 KGK-M4136-10X PANEL TANPA VISI 1
10 KW3-M4256-00X CD-ROM DRIVE 1
11 KGN-M4230-00X FLASH BOARD ASSY 1 512MB
11A KW3-M4230-00X FLASH BOARD ASSY 1 1GB(Op) M3X0020
12 KGK-M4255-00X FLASH DISK 1 512MB
12A KGK-M4255-10X FLASH DISK 1 1GB(Op) M3X0020
13 KGA-M5303-00X SW DAYA DC5 1
14 KGK-M5303-10X SW DAYA DC12 1
15 KGA-M4185-10X KIPAS MOTOR ASSY 3
YG200L
No Part No Nama Part Q&＃39;ty Keterangan Tanggal Revisi No. Kompatibilitas
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-02X SERVO BOARD ASSY 3
3 KGK-M4200-00X UNIT SISTEM ASSY 1
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 PAPAN PENGEMUDI KGN-M5810-10X 1
6 KGJ-M441H-02X VISION BOARD ASSY 2
7 KGR-M4530-01X ASSY PAPAN INTERFACE 1
8 KGN-M5880-00X D. ASSY PAPAN DAYA 1
9 KGK-M4136-10X PANEL TANPA VISI 1
10 KW3-M4256-00X CD-ROM DRIVE 1
11 ASSY PAPAN FLASH KGN-M4230-00X 1
12 FLASH DISK KGK-M4255-00X1
13 KGA-M5303-00X SW DAYA DC5 1
14 KGK-M5303-10X SW DAYA DC12 1
15 KGA-M4185-10X KIPAS MOTOR ASSY 3
YV88X
No Bagian No Nama Bagian Q&＃39;ty Keterangan Tanggal perubahan Direvisi No Kompatibilitas
1 KV1-M4110-00X KOTAK ASSY.C/R 1
1-1 KV1-M4110-10X KOTAK ASSY.C/R 1 (2001/1/15) M110049 OKE
2 KM5-M4510-20X PAPAN IBU ASSY.1
3 KM5-M5840-02X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002.05.09 M100114 OK
4 KM5-M4200-01X UNIT SISTEM ASSY.1
4-1 KM5-M4200-02X UNIT SISTEM ASSY.1 (1999.06.30) M960134 Oke
4-2 KM5-M4200-03X UNIT SISTEM ASSY.1 (2000.03.08) M030168 Oke
5 PAPAN PENGEMUDI KJ0-M5810-L2X ASSY.1
5-1 KJ0-M5810-L3X DRIVER BOARD ASSY 1 (1A) (1999.06.21) M960067 OK
6 PAPAN PENGEMUDI KJ0-M5810-K2X ASSY.1
6-1 KJ0-M5810-K3X DRIVER BOARD ASSY 1 (1B) (1999.06.21) M960067 OK
7 KM5-M441H-02X VISI PAPAN ASSY.1
7-1 KM5-M441H-03X VISION BOARD ASSY 1 (2000.03.02) M020111 OK
8 KM5-M5880-11X D.POWER ASSY.1
9 KJ0-M4134-10X PANEL TANPA SERVO 1
10 KJ0-M4132-10X PANEL, TANPA DRIVER 1
11 KM5-M4138-10X PANEL KIRI 2 1
12 KJ1-M4185-10X KIPAS MOTOR ASSY 3
13 KV1-M5303-00X SW DAYA DC5 1
13-1 KV1-M5303-01X SW DAYA DC5 1 (2000.09.04) M080150 OK
14 KV1-M5303-10X SW DAYA DC12 1
14-1 KV1-M5303-11X SW POWER DC12 1 (2000.09.04) M080150 OK
15 KL0-M53E2-00X TRANS 1 ASSY KL0 1
16 KM5-M4255-00X FLASH DISK 1 M230020
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KM5-M5840-02X PAPAN SERVO ASSY.1
2 PAPAN PENGEMUDI KJ0-M5810-H2X ASSY.1 hanya untuk YTF
2-1 KJ0-M5810-H3X PAPAN PENGEMUDI ASSY 1 X1 M960067
3 PAPAN PENGEMUDI KJ0-M5810-G2X ASSY.1 untuk ATS saja
3-1 PAPAN PENGEMUDI KJ0-M5810-G3X ASSY 1 X1 M960067
YV100II
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KM5-M5840-02X PAPAN SERVO ASSY.1
2 PAPAN PENGEMUDI KJ0-M5810-H2X ASSY.1 hanya untuk YTF
2-1 KJ0-M5810-H3X PAPAN PENGEMUDI ASSY 1 X1 M960067
3 PAPAN PENGEMUDI KJ0-M5810-G2X ASSY.1 untuk ATS saja
3-1 PAPAN PENGEMUDI KJ0-M5810-G3X ASSY 1 X1 M9600
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KM5-M5840-02X PAPAN SERVO ASSY.1
2 PAPAN PENGEMUDI KJ0-M5810-H2X ASSY.1 hanya untuk YTF
2-1 KJ0-M5810-H3X PAPAN PENGEMUDI ASSY 1 X1 M960067
3 PAPAN PENGEMUDI KJ0-M5810-G2X ASSY.1 untuk ATS saja
3-1 PAPAN PENGEMUDI KJ0-M5810-G3X ASSY 1 X1 M960067
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KM5-M5840-02X PAPAN SERVO ASSY.1
2 PAPAN PENGEMUDI KJ0-M5810-H2X ASSY.1 hanya untuk YTF
2-1 KJ0-M5810-H3X PAPAN PENGEMUDI ASSY 1 X1 M960067
3 PAPAN PENGEMUDI KJ0-M5810-G2X ASSY.1 untuk ATS saja
3-1 PAPAN PENGEMUDI KJ0-M5810-G3X ASSY 1 X1 M960067
YV100X
No Bagian No Bagian Nama Q&＃39;ty Keterangan Tanggal Revisi No.
1 KV1-M4110-00X KOTAK ASSY,C/R 1
2 KM5-M4510-20X PAPAN IBU ASSY.1
3 KM5-M5840-02X PAPAN SERVO ASSY.1
4 KM5-M4200-01X UNIT SISTEM ASSY.1
4-1 KM5-M4200-02X UNIT SISTEM ASSY 1 X2 M960134
5 PAPAN PENGEMUDI KJ0-M5810-K2X ASSY.1
5-1 KJ0-M5810-K3X PAPAN PENGEMUDI ASSY 1 X1 M960067
6 KM5-M441H-02X VISI PAPAN ASSY.1
7 KM5-M5880-11X D.POWER ASSY.1
8 KJ0-M4134-10X PANEL TANPA SERVO 1
9 KJ0-M4132-10X PANEL, TANPA DRIVER 2
10 KM5-M4138-10X PANEL KIRI 2 1
11 KJ1-M4185-10X KIPAS MOTOR ASSY 3
12 KV1-M5303-00X SW DAYA DC5 1
13 KV1-M5303-10X SW DAYA DC12 1
14 KL0-M53E2-00X TRANS 1 ASSY KL0 1
1 KM5-M5840-02X PAPAN SERVO ASSY.1
2 PAPAN PENGEMUDI KJ0-M5810-H2X ASSY.1 hanya untuk YTF
2-1 KJ0-M5810-H3X PAPAN PENGEMUDI ASSY 1 X1 M960067
3 PAPAN PENGEMUDI KJ0-M5810-G2X ASSY.1 untuk ATS saja
3-1 PAPAN PENGEMUDI KJ0-M5810-G3X ASSY 1 X1
YV100XG
No Bagian No Nama Bagian Q&＃39;ty Keterangan Tanggal perubahan Direvisi No. Compati.
1 KGA-M4110-00X KOTAK ASSY.C/R 1
2 KGA-M4510-00X PAPAN IBU ASSY.1
3 KM5-M5840-03X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO PAPAN ASSY 2 2002/5/9 M100113 OK
3-2 KM5-M5840-05X SERVO PAPAN ASSY 1 H010235 (2007/1/12) MCY0115 SET
KW3-M4209-00X UNIT SISTEM ASSY.1 STD (2003/9/24) M390061
KW3-M4209-10X UNIT SISTEM ASSY.1 OPSI TI tanpa CLI FEEDER (2003/9/24) M390061
KW3-M4209-21X UNIT SISTEM ASSY.1 OPSI IT dengan CLI FEEDER (2004/2/10) M420003
4-1
KW3-M4209-11X UNIT SISTEM ASSY.1 OPSI TI tanpa CLI FEEDER (22/3/2007) MD30053 NG
KW3-M4209-22X UNIT SISTEM ASSY.1 OPSI IT dengan CLI FEEDER (22/3/2007) MD30053 NG
5 PAPAN PENGEMUDI KJ0-M5810-K4X ASSY.1 (1B)
5-1 PAPAN PENGEMUDI KJ0-M5810-K5X ASSY.1 H010235 (2007/1/12) MCY0115 SET
6 KM5-M5882-11X D.POWER ASSY.1
7 KJ0-M4134-10X PANEL TANPA SERVO 2
PANEL 8 KJ0-M4132-10X.TIDAK ADA PENGEMUDI 1
9 KGA-M4185-10X KIPAS MOTOR ASSY 3
10 KGA-M5303-00X SW DAYA DC5 1
11 KW7-M5303-10X SW DAYA DC12 1
12 KGA-M53E2-00X TRANS 1 ASSY KGA 1
13 KV1-M441H-17X VISI UNIT ASSY.1
14 KW3-M4220-10X PAPAN PAPAN ASSY.1
PANEL 15 KGA-M4136-10X, TANPA PENGLIHATAN 1
16 KGN-M4255-00X FLASH DISK 1 W / ADAPTOR
16-1 KGN-M4255-20X FLASH DISK 1 W / O ADAPTOR 2003/11 M3X0032
17 CD-ROM KW3-M4256-00X 1
1 KM5-M5840-03X PAPAN SERVO ASSY.1
1-1 KM5-M5840-04X PAPAN SERVO ASSY.1 27/6/2003 M100113 Oke
1-2 KM5-M5840-05X PAPAN SERVO ASSY.1 (2007/1/12) MCY0115 SET
2 PAPAN PENGEMUDI KJ0-M5810-H4X ASSY.1 hanya untuk YTF (2)
2-1 PAPAN PENGEMUDI KJ0-M5810-H5X ASSY.1 (2007/1/12) MCY0115 SET
3 PAPAN PENGEMUDI KJ0-M5810-G4X ASSY.1 untuk WATS saja (2)
3-1 PAPAN PENGEMUDI KJ0-M5810-G5X ASSY.1 (2007/1/12) MCY0115 SET
4 PAPAN PENGEMUDI KJ0-M5810-F4X ASSY.1 hanya untuk ATS-M (2)
4-1 PAPAN PENGEMUDI KJ0-M5810-F5X ASSY.1 (2007/1/12) MCY0115 SET
