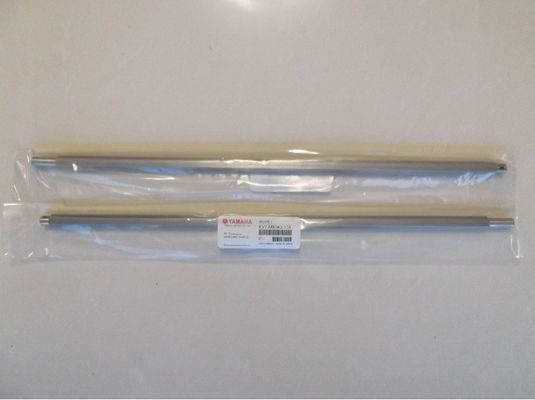

KV7-M9143-00X SMT Suku Cadang Spline KV7-M9143-10X KV7-M9143-XXX Untuk YV100X YV100Xg

KV7-M9143-00X SPLINE KV7-M9143-10X KV7-M9143-XXX Untuk YV100X YV100Xg

Deskripsi untuk YV100X YV100XG Spline:

Nama bagian: Spline YV100X YV100XG

Nomor Bagian: KV7-M9143-00X KV7-M9143-10X KV7-M9143-XXX

Mesin: Mesin YV100

Kondisi: Baru

Asal: Buatan Jepang

KV7-M9142-00X

KV7-M9101-02X TINGGAL, KAKI 4
2 KV7-M9102-00X PIRING 1 2
3 KV7-M9103-00X PIRING 2 2
4 KV7-M9106-00X BRKT.1, EXT.BINGKAI 1
5 KV7-M9107-00X BRKT.2, EXT.BINGKAI 1
6 KV7-M9108-00X BRKT.3, EXT.BINGKAI 1
7 KV7-M9109-00X BRKT.4, EXT.BINGKAI 1
8 KV7-M9105-00X BRKT., SPLINE 1
9 KV7-M9104-00X PIRING 3 2
KGA-M9116-00X LM RAIL&BLOK 15.460 2 W440
KGA-M9116-20X LM RAIL&BLOCK 15.400 2 W382
KGA-M9116-00X LM RAIL&BLOK 15.460 2 W335
KGA-M9116-10X LM RAIL&BLOK 15.280 2 W250
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-22X PLATE,LINEAR(385) 2
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-10X PLATE,LINEAR(250) 2
KV7-M9115-03X PLATE,LINEAR(445) 2 Dua titik tanda putih.(2003/3/14) M330041 Set
KV7-M9115-23X PLATE,LINEAR(385) 2 Dua titik tanda putih.(2003/3/14) M330041 Set
KV7-M9115-03X PLATE,LINEAR(445) 2 Dua titik tanda putih.(2003/3/14) M330041 Set
KV7-M9115-11X PLATE,LINEAR(250) 2 Dua titik tanda putih.(2003/3/14) M330041 Set
12 KV7-M9111-01X BRKT., COLLAR 1
13 KG7-M9110-01X COLLAR,W 3
13-1 90990-41J006 COLLAR 3 (2008/4/15) ME20075 OK
14 KV7-M9110-00X COLLAR 2,W 2
14-1 90990-41J056 COLLAR 2 (2008/4/17) ME20197 OK
15 PIRING KV7-M9118-00X, BRG.4
16 90933-01J200 BRG.2 6200ZZ
KV7-M9132-00X BOLA SEKRUP W(445) 2
KV7-M9132-10X BALL SCREW W(250) 2
KV7-M9132-20X BALL SCREW W(385) 2
KV7-M9A00-00X BOLA SEKRUP W(445) 2 (2007/10/31) MD00118 OK
KV7-M9A00-10X BALL SCREW W(250) 2 (2007/10/31) MD00118 OK
KV7-M9A00-20X BALL SCREW W(385) 2 (2007/10/31) MD00118 OK
18 KV7-M9113-00X TINGGAL, BINGKAI 2
19 KV7-M9114-00X BRKT., PANDUAN 2
19-1 KV7-M9114-01X BRKT.,PANDUAN 2 Dua titik tanda putih.(2003/3/14) M330041 Set
20 KV7-M9121-00X FRAME, KONV.TETAP 1
21 KV7-M9122-00X FRAME, KONV.Pindah 1
22 KV7-M9127-00X BINGKAI 1, EXT.2
22-1 KV7-M9127-01X BINGKAI 1, EXT.2 (2004/5/11) MA50020 Oke
23 KV7-M9128-00X FRAME 2, EXT.2
23-1 KV7-M9128-01X FRAME 2, EXT.2 (2004/5/11) MA50020 Oke
24 KV7-M9123-00X PANDUAN 1 4
25 KV7-M9126-00X PANDUAN 1-1 4
26 KV7-M9124-00X PIRING 1, PANDUAN 1
27 KV7-M9125-00X PIRING 2, PANDUAN 1
28 PANDUAN KV7-M9126-10X 1-2 4
29 KM7-M9113-01X PANDUAN 1, AKHIR 2
29-1 KGA-M9113-00X PANDUAN 1,AKHIR 2 (2001/8/24) M180096 NG
30 KM7-M9114-01X PANDUAN 2, AKHIR 2 Jenis
30-1 KGA-M9114-00X GUIDE 2, END 2 Type (2001/8/24) M180096 NG
31 KG7-M912A-00X BRACKET SENSOR 1
32 KV7-M9151-00X PEREDAM 1, W 2
33 KV7-M9152-00X DAMPER 2, W 2
34 KV7-M9129-00X BELT 1, KONVEYOR 2
35 KV7-M9144-00X BRKT.3, SENSOR 1
36 KG7-M9133-00X PLATE, TEMUKAN PIN 2
37 KG7-M9135-00X PLATE, EDGE 2 4
38 KG7-M9136-00X PLATE, EDGE 3 2
39 KH2-M9121-00X BEARING 4
40 KV7-M4886-00X MOTOR ASSY.1 KONV.MO
41 KM0-M655F-10X SENSOR, 1-3 1 L=1150
41-1 KGA-M911D-00X SENSOR SET POS 1 SQ034 (2002/2/28) M220126 OK
42 KV7-M9140-A0X PULLEY, KONV.ASSY 12
42-1 KV7-M9140-A0X PULLEY, CONV.ASSY 8 (2004/8/17) MA80028 OK
KV7-M9143-00X SPLINE 1(445) 1
KV7-M9143-10X SPLINE 1(250) 1
KV7-M9143-20X SPLINE 1(385) 1
44 KV7-M9142-00X PILLEY 1. MOTOR 1
45 KH2-M9105-10X PULLEY MOTOR :3GTP30 2
45-1 KH2-M9105-11X PULLEY,MOTOR:P30-3GT 2 (2001/6/5) M160031 OK
46 KV7-M9146-00X BELT 2 300-3GT-9
47 KG2-M9105-00X PULLEY 1 SPLINE 1
48 KG2-M9108-11X COLLAR, KONVEYOR 1
49 KGA-M91B2-00X BRKT., SENSOR 1
50 KG7-M9111-01X PULLEY 1 1
51 KG7-M9112-01X PULLEY 2 1
52 KG7-M9113-01X PULLEY 3 1
53 90K55-4W476W AC SERVO MOTOR 1
54 KV7-M9147-00X BRKT., MOTOR W 1
55 KV7-M9148-00X BRKT., KETEGANGAN 2
56 90933-02J608 BEARING 4
56-1 90933-02J608 BEARING 2 (2002/3/25) M230126 OK
57 KV7-M9149-00X COLLER,BRG 2
57-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
58 KG7-M9115-00X BELT W AXIS 1
59 KV7-M9150-00X ANJING 1, ASAL 1
60 KV7-M9155-00X BRKT., SENSOR SHAFT 2
61 KV7-M9156-01X SENSOR SHAFT 1
62 KV7-M9157-01X BRKT.4, SENSOR 1 Lubang ke Lubang 25mm
62-1 KV7-M9157-02X BRKT.4, SENSOR 1 Lubang ke Lubang 25.4mm (2006/3/17) MC30083 NG
63 KV7-M910A-00X STAY1, EXT.BINGKAI.2
64 KV7-M910B-00X STAY2, EXT.BINGKAI.2
65 SENSOR KU0-M655F-20X, 1-3 2 L=1400
65-1 KGA-M911A-00X SENSOR THT 1 SQ031 (2002/2/28) M220126 OK
66 KGA-M911F-00X SENSOR ORG 1
67 98907-03005 KEPALA PENGIKAT SEKRUP 20 M3X5
68 95304-03700 NUT HEXAGON 20
68-1 95302-03700 NUT HEXAGON 20 (2006/1/16) MBY0167 OK
69 KGS-M9140-A0X PULLEY, KONV.ASSY.4
70 KGA-M911E-00X SENSOR, KELUAR 1
71 90933-03J608 BEARING 2
72 91317-05020 BOLT HEX.SOCKET HEAD 12 M5X5
73 92907-05600 WASHER POLOS 2
