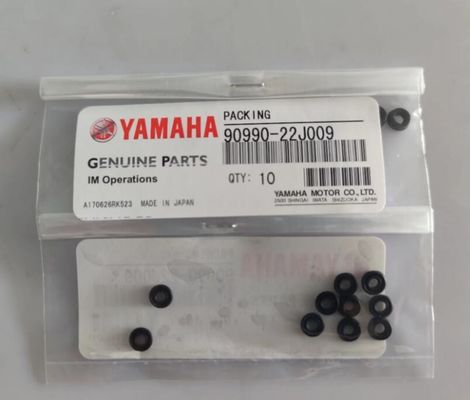

90990-22J009 YS12 YS24 Kemasan Poros Nosel

90990-22J009 YS12 YS24 Kemasan Poros Nosel

Keterangan:

1, Merek: Yamaha

2, Nama Bagian: Pengepakan

3, Nomor Bagian: 90990-22J009

4, Penggunaan: Poros Nosel

90990-22J002/KM1-M7141-00X PACKING(MYA-10a) YAMAHA KM1-M7141-00X PACKING(MYA-10a) PACKING Part no.: 5322 466 62416 YV100X,YV100XG,YV180X,YV180XG,YV100II,YG200II,YG20XG (Kepala FNC) Daftar bagian kepala

1 KV8-M7101-00X KEPALA PERUMAHAN 1

2 KG2-M7181-00X PACKING 28 jt 4

2-1 90990-22J001 KEMASAN 28 jt 4

3 KM1-M7140-00X KEMASAN 16 MYR-6

3-1 90990-22J003 KEMASAN 16 MYR-6

4 KM1-M7141-00X KEMASAN 20 MYA-10A

4-1 90990-22J002 KEMASAN 20 MYA-10A

5 KV8-M7103-00X PLUG PISTON 4

6 KV8-M71Y5-00X PENGEMASAN 4 MYA-12.5

6-1 90990-22J015 KEMASAN 4 MYA-12.5

7 K65-M257M-00X O-RING 3 20 S12.5

7-1 90200-01J125 O-RING 3 20 S12.5

8 STEKER KV8-M7103-10X 4

9 PISTON KV8-M7104-00X 8

10 KM1-M7107-00X KEMASAN 8 LO43165

10-1 90990-22J006 KEMASAN 8 LO43165

11 KV8-M71VS-00X KERAH, SENSOR

12 12 BAUT KGB-M7184-00X, HEXA.SH 7 M3X60

13 KV8-M71RJ-00X KERAH BRG.4

14 KG7-M7137-A0X PEGAS DAUN 8

15 KG7-M7169-00X SEKRUP 8

Mesin Cuci 16 KG7-M7170-00X 8

16-1 90990-28J002 RING POLOS 8 2003.03 M330113

17 KV8-M7109-00X KERAH 1 KEPALA 4

18 90933-03J128 BRG.24 MF128ZZS

19 KGB-M7167-00X PULLEY 8

20 KV8-M7154-00X SPG.KEMBALI 4

21 KV8-M7108-00X KACANG 8

22 90933-02J604 BRG.8 604ZZ

23 99001-03600 LINGKARAN 8

23-1 90990-01J030 LINGKARAN 8 2001.12 M1Y0129

24 KU1-M7152-00X CUCI CUCI 1 THURUST 8

25 KV8-M7110-00X KERAH 2 KEPALA 4

26 KV8-M71X2-00X SPG.KEMBALI 4

27 KV8-M71X1-00X SPG.LOKASI 4

28 KV8-M71R1-XXX SHAFT 1 SEL 4

29 KV8-M71R2-01X STOPPER BLOK 4

30 KV7-M71M6-01X NOZZLE SEKRUP 8

31 LOKASI PIN KV8-M71R5-02X 4

32 KV8-M71R9-00X CAM 8

33 KGB-M71RA-00X BEVEL - GEAR 1 4

34 KV8-M71RB-A0X BEVEL - GEAR 2 ASSY.4

35 KV8-M71RC-00X PIN CAM 8

36 LINGKARAN KV8-M71RD-00X 16 E0.8

36-1 90440-10J008 LINGKARAN 16

37 CUCI CUCI KV8-M71RE-00X 4

38 99009-12800 LINGKARAN 4 S12

39 KV8-M71U0-01X NOZZLE, INDEX ASSY 4

39-1 KV8-M711N-A0X NOZZLE & SHAFT ASSY 4 2001.08.27 M180124

40 KGB-M71R7-00X PEMEGANG BRG.4

40-1 KGB-M71R7-01X PEMEGANG BRG.4 2005.05.26 MB50099

41 KV8-M71R8-00X KERAH BRG.4

41-1 KGB-M71R8-00X KERAH BRG.4 2005.05.26 MB50099

42 90933-01J801 BANTALAN 4

43 KGB-M7111-00X PULLY POST 1

44 KV8-M7115-00X SHAFT 1 TEGANGAN 4

45 KGB-M7116-00X PULI 2 1

BLOK 46 KV8-M7117-00X, SESUAIKAN 1

BLOK 47 KV8-M7119-00X, SESUAIKAN 1

48 KV8-M7131-01X BRAKET, Z SENSOR 1

PLAT 49 KV8-M7166-00X, KATUP 1

SENSOR 50 KGB-M71V1-01X, TETAP F 1 Z2

51 KGB-M71V2-01X SENSOR, TETAP R 1 Z2

52 KV8-M71V3-00X BRAKET, KUNCI SENSOR 1

53 KGB-M71VC-00X PEMEGANG PULLEY 1 2002.2.1

54 KGB-M71Y1-01X KERAH 1 PULI 1

55 90933-01J800 BEARING 2

56 99009-10800 LINGKARAN 1 ISTW-10

57 KGB-M71Y9-00X TUBUH, SILINDER 1

58 KV8-M71YA-00X KOPLING KATUP 4

59 KV8-M71YB-00X KEMASAN 8

59-1 90990-22J005 KEMASAN 8

60 91317-05006 BOLT HEX.,SOCKET HEAD 8 M5X5 2002.01.08 M210011

61 KM1-M7105-00X PLUG 2 8

62 KM1-M7112-01X PENGHENTI 1

63 KGB-M7181-00X BELT, KEPALA 2

64 92A08-03303 SET SEKRUP 16 M3X3

65 KM1-M7186-00X O-RING 4 5X1.0

65-1 90990-17J007 O-RING 4 5X1.0

66 KV7-M654F-00X SENSOR 3 4 E2S-Q22 (KOPLING)

67 KV8-M653F-A0X SENSOR 3 4 E2S-Q22 (1,3,5,9)

68 KV7-M654G-00X SENSOR 4 4 E2S-Q22B (2,4,6,8)

69 KV8-M653H-00X SENSOR 5 ASSY 1 (NOZZLE POS.)

69-1 KV8-M653H-A0X SENSOR 5 ASSY 1 2001.06.27 M160170

ASSY KEPALA SENSOR 70 KGB-M653A-00X 3

70-1 KGB-M653A-01X SENSOR KEPALA ASSY 3 2004.03.18 M430057

71 SENSOR KGB-M653F-10X, 3 ASSY.1 EE-SX872P (R-ORG)

72 93604-06083 PIN DOWEL 6 4X6

72-1 90990-20J001 PIN DOWEL 6 4X6 2002.02.19 M220087

73 99480-04008 PIN PARALEL 8 4X8

74 90110-03248 BAUT HEXA.SH 7 M3X55

74-1 91317-03055 BAUT HEXA.SH 7 2003.07 M370057

75 92D18-02008 BAUT HEX 12 M2X0.4X6

75-1 90115-02J008 BAUT HEX 12 2002.08 M280085

76 $KM-05 MUFFLER 7 77 $SLH8-01 GAMBAR 2 78 $TSH6-01 GABUNG 2

79 KV8-M7162-00X KATUP SOLENOID (UNIT) 1

RESIN EJECTER 80 KGB-M7163-00X 1

81 KGB-M71V9-00X SAMPUL 2

82 90563-23J060 SPASI 4

SENSOR PENUTUP 83 KV8-M71VB-00X 1

84 SPASIK KGB-M7169-00X 1

85 GEAR KGB-M7170-00X 1 1

86 KGB-M7171-00X GEAR 2 1

87 KGB-M7172-00X COLLAR 1, GEAR 1

88 KGB-M7173-00X COLLAR 2, GEAR 1

89 KGB-M7174-00X SHAFT, GEAR 1

90 90933-02J085 BEARING 2 MR85ZZS

91 KGB-M7179-00X COVER, GEAR 1

92 KGB-M7185-00X PLAT 2, MUR 1

93 PLAT KGB-M7183-00X, EJECTOR 1

PLAT 94 KV8-M71VR-00X, MUR 8

95 KM1-M4592-12X VAC PAPAN SENSOR ASSY.8

95-1 KM1-M4592-13X VAC PAPAN SENSOR ASSY.8 2005.04.19 MB40065

96 KGB-M711S-A0X FNC SHAFT, SUKU CADANG 1 SUKU CADANG

97 KGB-M712S-A0X STD.POROS 1, SUKU CADANG 1 SUKU CADANG

98 KV8-M7103-A0X PISTON PLUG ASSY 4

99 KV8-M7103-B0X PLUG ASSY 4

ASSY PISTON 100 KV8-M7104-A0X 8

101 KGB-M71S0-50X STD.SHAFT 3, SUKU CADANG 1 SUKU CADANG 2002.10.18 M200051

102 KGB-M711S-B0X FNC SHAFT, SUKU CADANG 1 LINGKARAN NOZZLE 2002.12.13 M2Y0031

103 KV8-M712N-A0X NOZZLE & SHAFT ASSY 1 LINGKARAN NOZZLE 2001.09.05 M190016

104 PLAT KGB-M71R9-00X, BRG 4 2005.05.26 MB50099

105 92A08-04305 SET SEKRUP 3 M4X5

106 TUBUH KGB-M71Y9-A0X, ASSY SILINDER 1 2001.02.02 M110144

107 KH1-M7105-A0X PLUG2 ASSY 8

108 KGB-M71VD-00X NUT GEAR 1 2004.02.03 M420001

109 KGB-M7163-A0X EJECTOR 1 SUKU CADANG

110 KM1-M7163-20X KATUP 1 SUKU CADANG

111 KM1-M7163-30X KATUP 1 SUKU CADANG

112 M46-M8527-C0X FILTER 1 SUKU CADANG 2001.02.02 M120012

113 90990-17J00B O-RING 1 SUKU CADANG

114 KM5-M7174-F0X TUTUP FILTER 1 SUKU CADANG 2001.02.02 M120012

115 90990-17J010 O-RING 1

TUTUP FILTER 116 KM5-M7174-G0X 1

117 KV8-M7162-20X KATUP 1 SUKU CADANG

118 KV8-M7162-10X KATUP 1 SUKU CADANG
