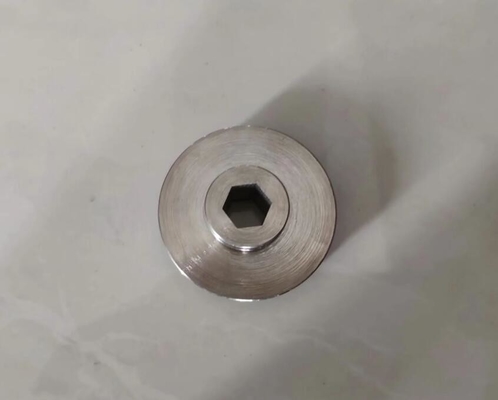

KG2-M9105-00X YAMAHA Conveyor Pulley KG2-M9108-11X

KG2-M9105-00X YAMAHA Conveyor Pulley KG2-M9108-11X

Deskripsi untuk YV100X YV100XG Spline:

Nama bagian: YV100X YV100XG Spline

Nomor bagian: KG2-M9105-00X KG2-M9108-11X

Mesin: Mesin YV100

Kondisi: Baru

Asal: Buatan Jepang

KV7-M9142-00X

KV7-M9101-02X TETAP, KAKI 4
2 PLAT KV7-M9102-00X 1 2
3 PLAT KV7-M9103-00X 2 2
4 KV7-M9106-00X BRKT.1, EXT.BINGKAI 1
5 KV7-M9107-00X BRKT.2, EXT.BINGKAI 1
6 KV7-M9108-00X BRKT.3, EXT.BINGKAI 1
7 KV7-M9109-00X BRKT.4, EXT.BINGKAI 1
8 KV7-M9105-00X BRKT., SPLINE 1
9 PLAT KV7-M9104-00X 3 2
KGA-M9116-00X LM RAIL&BLOK 15.460 2 W440
KGA-M9116-20X LM REL&BLOK 15.400 2 W382
KGA-M9116-00X LM RAIL&BLOCK 15.460 2 W335
KGA-M9116-10X LM RAIL&BLOCK 15.280 2 W250
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-22X PLATE,LINEAR(385) 2
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-10X PLATE,LINEAR(250) 2
KV7-M9115-03X PLATE,LINEAR(445) 2 Dua titik tanda putih.(2003/3/14) M330041 Diatur
KV7-M9115-23X PLATE,LINEAR(385) 2 Dua titik tanda putih.(2003/3/14) M330041 Diatur
KV7-M9115-03X PLATE,LINEAR(445) 2 Dua titik tanda putih.(2003/3/14) M330041 Diatur
KV7-M9115-11X PLATE,LINEAR(250) 2 Dua titik tanda putih.(2003/3/14) M330041 Diatur
12 KV7-M9111-01X BRKT., KERAH 1
13 KG7-M9110-01X KERAH,W 3
13-1 90990-41J006 KERAH 3 (2008/4/15) ME20075 Oke
14 KV7-M9110-00X KERAH 2,W 2
14-1 90990-41J056 KERAH 2 (2008/4/17) ME20197 Oke
PLAT 15 KV7-M9118-00X, BRG.4
16 90933-01J200 BRG.2 6200ZZ
KV7-M9132-00X BOLA SEKRUP W(445) 2
KV7-M9132-10X BOLA SEKRUP W(250) 2
KV7-M9132-20X BOLA SEKRUP W(385) 2
KV7-M9A00-00X BOLA SEKRUP W(445) 2 (2007/10/31) MD00118 OK
KV7-M9A00-10X BOLA SEKRUP W(250) 2 (2007/10/31) MD00118 OK
KV7-M9A00-20X BOLA SEKRUP W(385) 2 (2007/10/31) MD00118 OK
TETAP 18 KV7-M9113-00X, BINGKAI 2
19 KV7-M9114-00X BRKT., PANDUAN 2
19-1 KV7-M9114-01X BRKT.,PEDOMAN 2 Tanda putih dua titik.(2003/3/14) M330041 Diatur
20 KV7-M9121-00X BINGKAI, KONV.TETAP 1
21 KV7-M9122-00X BINGKAI, KONV.BERGERAK 1
22 KV7-M9127-00X BINGKAI 1, EXT.2
22-1 KV7-M9127-01X BINGKAI 1,EKST.2 (2004/5/11) MA50020 Oke
23 KV7-M9128-00X BINGKAI 2, EXT.2
23-1 KV7-M9128-01X BINGKAI 2, EXT.2 (2004/5/11) MA50020 Oke
24 PANDUAN KV7-M9123-00X 1 4
25 PANDUAN KV7-M9126-00X 1-1 4
26 KV7-M9124-00X PELAT 1, PANDUAN 1
27 KV7-M9125-00X PLAT 2, PANDUAN 1
28 PANDUAN KV7-M9126-10X 1-2 4
29 KM7-M9113-01X PANDUAN 1, AKHIR 2
29-1 KGA-M9113-00X PANDUAN 1, AKHIR 2 (2001/8/24) M180096 NG
30 KM7-M9114-01X PANDUAN 2, AKHIR 2 Jenis
30-1 KGA-M9114-00X PANDUAN 2, AKHIR 2 Tipe (2001/8/24) M180096 NG
SENSOR BRAKET KG7-M912A-00X 31 1
32 KV7-M9151-00X DAMPER 1, W 2
33 KV7-M9152-00X DAMPER 2, W 2
34 KV7-M9129-00X SABUK 1, KONVEYOR 2
35 KV7-M9144-00X BRKT.3, SENSOR 1
PLAT 36 KG7-M9133-00X, CARI PIN 2
37 PLAT KG7-M9135-00X, TEPI 2 4
38 PLAT KG7-M9136-00X, TEPI 3 2
39 BEARING KH2-M9121-00X 4
ASSY MOTOR 40 KV7-M4886-00X.1 CONV.MO
SENSOR 41 KM0-M655F-10X, 1-3 1 L=1150
41-1 KGA-M911D-00X SENSOR SET POS 1 SQ034 (2002/2/28) M220126 OK
42 KV7-M9140-A0X PULLEY,CONV.ASSY 12
42-1 KV7-M9140-A0X PULLEY,CONV.ASSY 8 (2004/8/17) MA80028 Oke
KV7-M9143-00X SPLINE 1(445) 1
KV7-M9143-10X SPLINE 1(250) 1
KV7-M9143-20X SPLINE 1(385) 1
44 KV7-M9142-00X PILLEY 1. MOTOR 1
45 KH2-M9105-10X MOTOR PULLEY :3GTP30 2
45-1 KH2-M9105-11X PULLEY,MOTOR:P30-3GT 2 (2001/6/5) M160031 OKE
46 KV7-M9146-00X BELT 2 300-3GT-9
47 KG2-M9105-00X PULLEY 1 SPLINE 1
48 KG2-M9108-11X COLLAR, CONVEYOR 1
49 KGA-M91B2-00X BRKT., SENSOR 1
50 KG7-M9111-01X PULI 1 1
51 KG7-M9112-01X PULI 2 1
52 KG7-M9113-01X PULI 3 1
53 MOTOR SERVO AC 90K55-4W476W 1
54 KV7-M9147-00X BRKT., MOTOR W 1
55 KV7-M9148-00X BRKT., TEGANGAN 2
56 90933-02J608 BANTALAN 4
56-1 90933-02J608 BEARING 2 (2002/3/25) M230126 OKE
57 KV7-M9149-00X COLLER,BRG 2
57-1 90990-41J057 KERAH 2 (2008/4/17) ME20197 Oke
58 KG7-M9115-00X BELT W AXIS 1
59 KV7-M9150-00X ANJING 1, ASAL 1
60 KV7-M9155-00X BRKT., SENSOR SHAFT 2
61 KV7-M9156-01X SENSOR SHAFT 1
62 KV7-M9157-01X BRKT.4,SENSOR 1 Lubang ke Lubang 25mm
62-1 KV7-M9157-02X BRKT.4,SENSOR 1 Lubang ke Lubang 25,4mm (2006/3/17) MC30083 NG
63 KV7-M910A-00X STAY1, EXT.BINGKAI.2
64 KV7-M910B-00X STAY2, EXT.BINGKAI.2
65 KU0-M655F-20X SENSOR, 1-3 2 L=1400
65-1 KGA-M911A-00X SENSOR THT 1 SQ031 (2002/2/28) M220126 OK
66 KGA-M911F-00X SENSOR ORG 1
67 98907-03005 KEPALA PENGIKAT SEKRUP 20 M3X5
68 95304-03700 KACANG HEXAGON 20
68-1 95302-03700 NUT HEXAGON 20 (2006/1/16) MBY0167 OK
69 KGS-M9140-A0X PULLEY, CONV.ASSY.4
SENSOR 70 KGA-M911E-00X, KELUAR 1
71 90933-03J608 BANTALAN 2
72 91317-05020 BOLT HEX.SOCKET KEPALA 12 M5X5
73 92907-05600 CUCI POLOS 2
