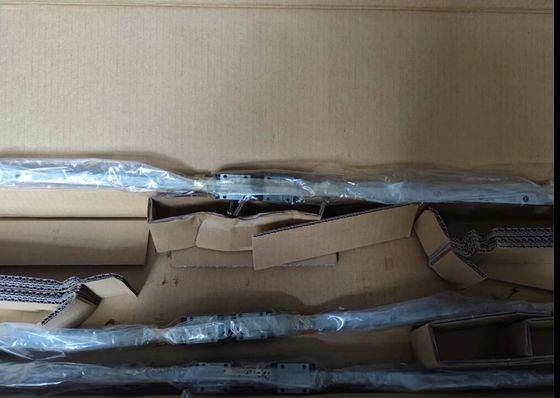

Panduan Sumbu KV7-M2276-S0X -X Set Panduan NSK YV100X K47-M2276-S0X

Panduan Sumbu KV7-M2276-S0X -X Set Panduan NSK YV100X K47-M2276-S0X

Informasi detil:

1, Nama Bagian: YV100X X Axis Guide

2, Nomor Bagian: KV7-M2276-S0X

3, Merek: NSK

1 KV7-M2211-02X BINGKAI X SUMBU 1
2 KV7-M2213-02X PLAT A,X AXIS 1
3 KV7-M2214-02X PELAT B, SUMBU X 1
4 KOPLING KM0-M2220-00X, SUMBU X 1
5 KV7-M2231-00X SPACER R,NUT 3
6KM0-M2233-00X SPACER R2 NUT 1
7 PLAT KV8-M2236-00X A 1
8 KV8-M2237-00X PLAT B 1
9 KV7-M2239-00X BRAKET 1 2
10 KM0-M2241-00X PEMEGANG, MOTOR 1
11 KV7-M2242-00X HOLDER,BRG X AXIS 1
12 KV7-M2645-00X BRG.,ANGULAR 1
13 KV7-M2261-00X PEMEGANG, KEPALA 1
14 KV7-M2271-00X BOLA SEKRUP X SUMBU 1
14-1 KV7-M2271-01X BOLA SEKRUP X AXIS Y1 M9X0010
15 90K52-87174X MOTOR SERVO AC 1
16KV7-M6 53A-00X SENSOR, 1 ASSY 1 L=600
17 KV7-M653E-00X SENSOR,2 ASSY 1 L=600
18 SET PANDUAN X-AXIS K47-M2276-S0X 1
19 KABEL KV7-M2267-00X, SALURAN 1
20 K94-M220A-00X TAPE X-AXIS 1
21 K94-M220A-10X TAPE X-AXIS 1
22 KV7-M2282-00X ANJING, ORG 1
23 KV7-M2283-00X ANJING, BATAS KE-2 2
PLAT 24 KV7-M226B-00X 2
25 KV7-M2291-00X BRAKET, SENSOR 1
BLOK 26KV7-M2247-00X, STOPPER X 1
27 KV7-M2248-00X PEREDAM 1 2
28 KM0-M2251-00X BAUT NYLOCK 16M 8X22L
KABEL PENUTUP 29 KV7-M226A-00X 1
30 KV7-M2268-00X BRAKET 1, TAPE 1
31 KV7-M2269-00X BRAKET 2, TAPE 1
32 KV7-M220A-01X PITA, X SALURAN 1
33 KV7-M220B-00X PITA 2,X SALURAN 1
34 KV7-M2266-00X PLATE,NUT 2
35 KV7-M2240-00X SLEEVE,BRG.1
PERUMAHAN 36KV7-M2243-00X,BRG.X 1
37 KV7-M2244-00X COVER,BRB.PERUMAHAN 1
38 KV7-M2246-00X COIL SPRING M 6
SEAL MINYAK 39 KV7-M2647-00X 2
SPASIR 40 KV7-M2648-00X 3
41 KG2-M9173-00X KUNCI 1
KONEKTOR SEGEL 42 KM0-M223A-00X 1
43 KV7-M2256-00X PEGANGAN 2
44 KV7-M2257-00X PEGANGAN SPASIR 2
45 KV7-M220C-00X PITA 3,X SALURAN 1
46KV7-M221A-A0X PENUTUP, ASSY SALURAN 1
47 KV7-M2295-01X BRAKET, PIN 2
48 KV7-M2296-00X BRAKET, SEKRUP 2
49 KV7-M2297-00X TAPER PIN 4 8X30
SET NYLOCK 50 KV7-M2298-00X,SEKRUP 6
51 KM0-M2252-00X PENGHENTI 1
52 99480-06014 PIN, PARALEL
