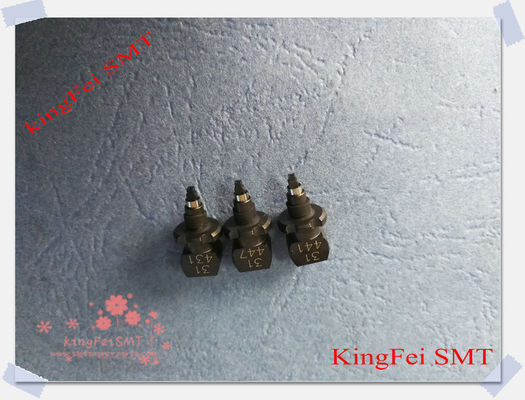

KM0-M711A-30X KM0-M711A-03X 31A 1005mm SMT Yamaha Nozzle 0402 Untuk Mesin YV100II

KM0-M711A-30X KM0-M711A-03X 31A Nozzle 1005mm SMT Nozzle 0402 Untuk Mesin YV100II

Nama Bagian: Nozzle

Nomor Bagian: KM0-M711A-03X, KM0-M711A-30X

Ketik: 31A

Ukuran Komponen: 1005mm 0402

Bahan: ujung intan

Mesin: YV100II

Yamaha YVL88 II / YV100 II NOZZLE
YVL88 II / YV100 II NOZZLE (EMERALD / TOPAZ II)
Bagian nomor Deskripsi
KM0-M711A-02XD YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE '-' (DIPERBAIKI)
(532236010198A) (KUNCI BERLIAN)
KM0-M711A-02XD YVL88 / YV100 NOZZLE - A (TYPE 31) - BENTUK 'X' (DIPERBAIKI)
(532236010198B) (TALI BERLIAN)
KM0-M711A-02RD YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE 'O' (DIPERBAIKI)
(532236010433) (TALI BERLIAN)
KM0-M711B-00X YVL88 / YV100 NOZZLE - B (TYPE 32-1) (532236010199)
KM0-M711C-00X YVL88 / YV100 NOZZLE - C (TYPE 32-2) (532236010201)
KM0-M711D-00X YVL88 / YV100 NOZZLE - D (TYPE 33) (532236010202)
KM0-M711E-00X YVL88 / YV100 NOZZLE - E (TYPE 34) (532236010203)
KM0-M711F-00X YVL88 / YV100 NOZZLE - F (TYPE 35) MELF (532236010272)
KM0-M711A-02R YVL88 / YV100 NOZZLE - A (TYPE 39) OD 1.2 / ID 0.6 (ROUND TIP)
SPRING LOADED (DIAMOND TIP)
KM0-M711A-302D YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED (1,2 X
0,8) (TALI BERLIAN) (532236010425)
KM0-M711A-0807D YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED (0,8 X
0,7) (TIP BERLIAN)
YV112 PICK UP NOZZLE (SAPPHIRE / COMET)
Bagian nomor Deskripsi
KG2-M7191-100 YV112 PICK UP NOZZLE TYPE 1 OD 0.9 / ID 0.5 (532236010335)
KG2-M7191-200 YV112 PICK UP NOZZLE TYPE 2 OD 1.4 / ID 0.8 (532247960083)
KG2-M7191-300 YV112 PICK UP NOZZLE TYPE 3 OD 3.O / ID 2.0 (532247960084)
KG2-M7191-400 YV112 PICK UP NOZZLE TYPE 4 OD 6.0 / ID 4.0 (532236010289)
KG2-M7191-500 YV112 PICK UP NOZZLE TYPE 5 OD 10.0 / ID 8.0 (532236010291)
KG2-M7191-600 YV112 PICK UP NOZZLE 9 HOLES (996500007827)

Yamaha YV100II YV100X YV100XG YG200 YG300 nozzle
Kebijaksanaan Bersinar Teknologi Elektronik (Cina) Limited memiliki persediaan besar untuk nozzle YAMAHA. Kami dapat menyediakan layanan purna jual gratis dan layanan teknis. Rincian nozzle yamaha adalah sebagai berikut:
KV8-M7710-A1X NOZZLE 71A ASSY.
KV8-M7720-A0X NOZZLE 72A ASSY.
KV8-M7730-00X NOZZLE 73A
KV8-M7740-A0X NOZZLE 74A
KV8-M7760-00X NOZZLE 76A
KM0-M711A-31X TYPE 31
KM0-M711C-02X TYPE 32
KM0-M711D-00X TYPE 33
KM0-M711E-00X TYPE 34
KG7-M71AB-A0X TYPE 35
KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F A
KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F A
KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
KM9-M7107-00X SHFT, HEAD ASSY
KM9-M7106-00X SHAFT HEAD ASSY
KV8-M713S-A0X STD.SHAFT2, SPARE
KV8-M712S-A0X STD.SHAFT1, SPARE
KV8-M711S-A0X FNC SHAFT, SPARE
KGB-M711S-A0X FNC SHAFT, SPARE
KGB-M712S-A0X STD.SHAFT1, SPARE
KGT-M712S-A0X STD. SHAFT 1, SPARE
KGT-M7710-A0X NOZZLE 201A ASSY. 1 Jenis 201A
KGT-M7720-A0X NOZZLE 202A ASSY. 1 Tipe 202A
KGT-M7730-A1X NOZZLE 203A ASSY. 1 Jenis 203A
KGT-M7760-A0X NOZZLE 206A ASSY. 1 Jenis 206A
KGT-M7790-A0X NOZZLE 209A ASSY. 1 Tipe 209A
KV8-M711N-A0X NOZZLE & SHAFT ASSY. 1
KV8-M71U0-01X NOZZLE ASSY. 1 71/72 / 73F
KHN-M7710-A2 NOZZLE 301A ASSY.
KHN-M7710-A1 NOZZLE 301A ASSY.
KHN-M7720-A1 NOZZLE 302A ASSY.

YAMAHA YV100X / Xg NOZZLE
YAMAHA YV100X / Xg NOZZLE (TOPAZ X / X II)
Bagian nomor Deskripsi
KV8-M71UX-00XD YV100X NOZZLE TIP - TYPE 7XF (0,8 X 0,7) (TIP BERLIAN)
KV8-M71U1-002D YV100X NOZZLE TIP - TYPE 71F (1,2 X 0,8) 'X' (TIP BERLIAN)
KV8-M71U2-001D YV100X NOZZLE TIP - TYPE 72F (0,92 X 1,75) 'X' (TIP BERLIAN)
KV8-M71U9-A01D YV100X NOZZLE TIP - TYPE 7WF (1,2 / 0,6) (TIP BERLIAN)
KV8-M71NX-A0XD YV100X NOZZLE ASSY - TYPE 7XF (0.8X0.7) (KUNCI BERLIAN)
KV8-M71N1-A00D YV100X NOZZLE ASSY - TYPE 71F (TIP BERLIAN) (532236010484)
KV8-M71N2-A00D YV100X NOZZLE ASSY - TYPE 72F (TIP BERLIAN) (532236010485)
KV8-M71N3-A00 YV100X NOZZLE ASSY - TYPE 73F (532236010486)
KV8-M71N9-A00 YV100X NOZZLE ASSY - TYPE 79F (1,2 / 0,6) (TIP BERLIAN)
KV8-M71U6-001 YV100X NOZZLE HOUSING
KV8-M7107-000 YV100X SPRING (MOQ: 10 pcs)
KV8-M7105-001 YV100X SCREW (MOQ: 10 pcs)
KV8-M7700-A0XD YV100X NOZZLE ASSY - TYPE 7XA (0,8 X 0,7) (TIP BERLIAN)
KV8-M7710-A0XD YV100X NOZZLE ASSY - TYPE 71A (1,2 X 0,8) (TIP BERLIAN)
(946602962471)
KV8-M7720-A0XD YV100X NOZZLE ASSY - TYPE 72A (1,7 X 0,94) (TIP BERLIAN)
(946602962481)
KV8-M7730-00X YAMAHA 73A ASSY NOZZLE (996500002777) (946602962451)
KV8-M7740-A0X YAMAHA 74A ASSY NOZZLE (532236010495)
KV8-M7760-00X YAMAHA 76A ASSY NOZZLE (MELF) (532236010496)
KV8-M7790-A0XD YAMAHA 79A ASSY NOZZLE (1,2 / 0,6) (TIP BERLIAN)
